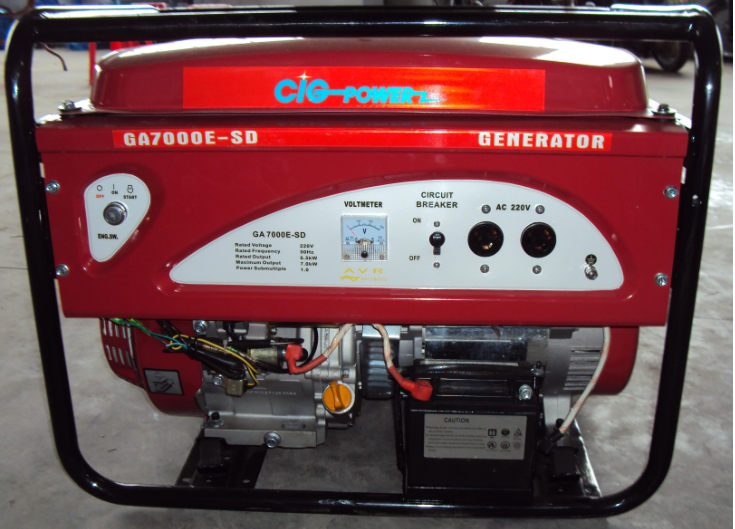

GA7000E-SD
Name
GA7000E-SD
Introdution
GA7000E-SD
Genset Model: GA7000E-SD
Engine Model: SD 190F
Rated Voltage: 230V
Rated Current: 28.2A
Frequency: 50HZ
Rated Watts: 6500W
Surge Watts: 7000W
Power Factor: COS=1.0
Voltage Regulation: Automatic Voltage Regulator
Bore x Stroke: 90 x 68(mm)
Compress Ratio: 8.0:1
Start System: Manual and Electrical Start Up
Ignition System: Electric Ignition System
Fuel Tank Capacity: 25L
Oil Capacity: 1.1L
Engine Type: OHV25, Single Cylinder, Forced Air Cooling, 4Stroke
Net/Gross Weight: 90 /95(KG)
Package Dimension: 720 x 540 x 590(mm)
GA5000E-SD
Name
GA5000E-SD
Introdution
Genset Model: GA5000E-SD
Engine Model: SD188F
Rated Voltage: 230V
Rated Current: 21.7A
Frequency: 50HZ
Rated Watts: 5000W
Surge Watts: 5500W
Power Factor : COS=1.0
Voltage Regulation: Automatic Voltage Regulator
Bore x Stroke: 88 x 64(mm)
Compress Ratio: 8.0:1
Start System: Manual and Electrical Start Up
Ignition System: Electric Ignition System
Fuel Tank Capacity: 25L
Oil Capacity: 1.1L
Engine Type: OHV25, Single Cylinder, Forced Air Cooling, 4-Stroke
Net/Gross Weight: 80 / 87(KG)
Package Dimension: 720 x 540 x 590(mm)

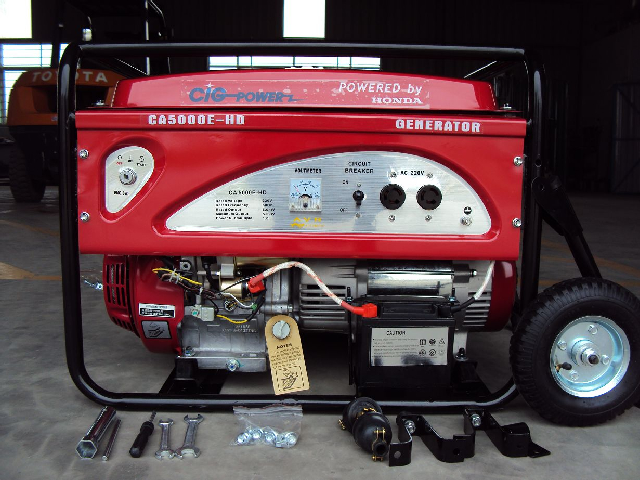

GA5000E-HD
Name
GA5000E-HD
Introdution
Genset Model: GA5000E-HD
Engine Model: HONDA GX390
Rated Voltage: 230V
Rated Current: 21.7A
Frequency: 50HZ
Rated Watts: 5000W
Surge Watts: 5500W
Power Factor: COS=1.0
Voltage Regulation: Automatic Voltage Regulator
Bore x Stroke: 88 x 64(mm)
Compress Ratio: 8.0:1
Start System: Manual and Electrical Start Up
Ignition System: Electric Ignition System
Fuel Tank Capacity: 25L
Oil Capacity: 1.1L
Engine Type: OHV25, Single Cylinder, Forced Air Cooling, 4-Stroke
Net/Gross Weight: 80 / 87(KG)
Package Dimension: 720 x 540 x 590(mm)
GA3000-SD
Name
GA3000-SD
Introdution
Genset Model: GA3000-SD
Engine Model: SD 170F
Rated Voltage: 230V
Rated Current: 12.1A
Frequency: 50HZ
Rated Watts: 2900W
Surge Watts: 3100W
Power Factor: COS=1.0
Voltage Regulation: Automatic Voltage Regulator
Bore x Stroke: 70 x 54(mm)
Compress Ratio: 8.5:1
Start System: Manual Start Up
Ignition System: Electric Ignition System
Fuel Tank Capacity: 15L
Oil Capacity: 0.6L
Engine Type: OHV25, Single Cylinder, Forced Air Cooling, 4Stroke
Net/Gross Weight: 48 /52(KG)
Package Dimension: 620 x 455 x 470(mm)
